Name: IXTX4N300P3HV
Brand: IXYS
SKU: IXTX4N300P3HV
Price: 74.94 USD
Availability: InStock

REF: IXTX4N300P3HV IXYS

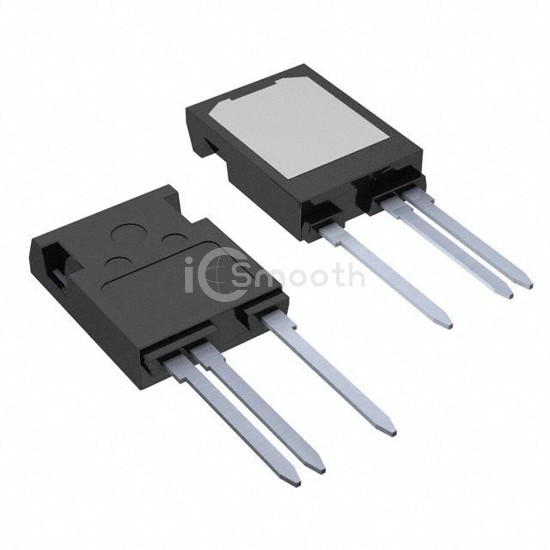

IXTX4N300P3HV

MOSFET N-CH 3000V 4A TO247PLUSHV

IXTX4N300P3HV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 3000V 4A TO247PLUSHV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.

Datasheet Request a Quote

In Stock: 66

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	3000 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	12.5Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	139 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3680 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	960W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247PLUS-HV
Package / Case	TO-247-3 Variant
