Name: IXTX400N15X4
Brand: IXYS
SKU: IXTX400N15X4
Price: 43.20 USD
Availability: InStock

REF: IXTX400N15X4 IXYS

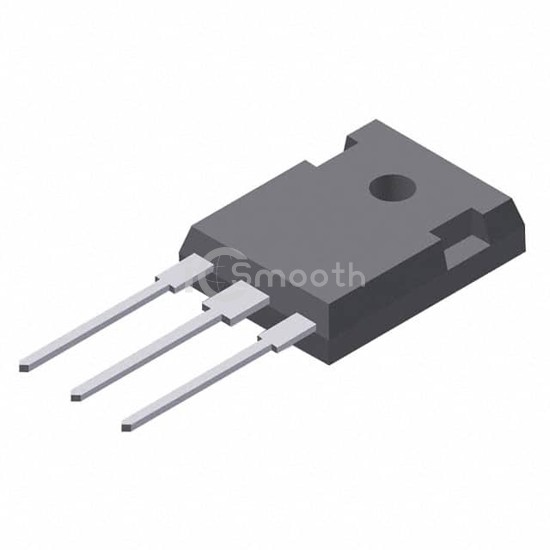

IXTX400N15X4

MOSFET N-CH 150V 400A PLUS247

IXTX400N15X4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 150V 400A PLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3 Variant.

Datasheet Request a Quote

In Stock: 2,960

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	400A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	430 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1500W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS247™-3
Package / Case	TO-247-3 Variant
