Name: IXTT30N50L2
Brand: IXYS
SKU: IXTT30N50L2
Price: 17.84 USD
Availability: InStock

REF: IXTT30N50L2 IXYS

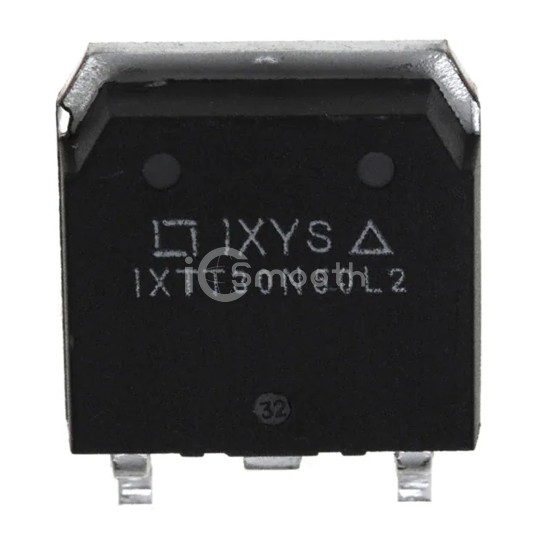

IXTT30N50L2

MOSFET N-CH 500V 30A TO268

IXTT30N50L2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 500V 30A TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 8,980

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	200mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	240 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8100 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	400W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268AA
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
