Name: IXTP94N20X4
Brand: IXYS
SKU: IXTP94N20X4
Price: 12.54 USD
Availability: InStock

REF: IXTP94N20X4 IXYS

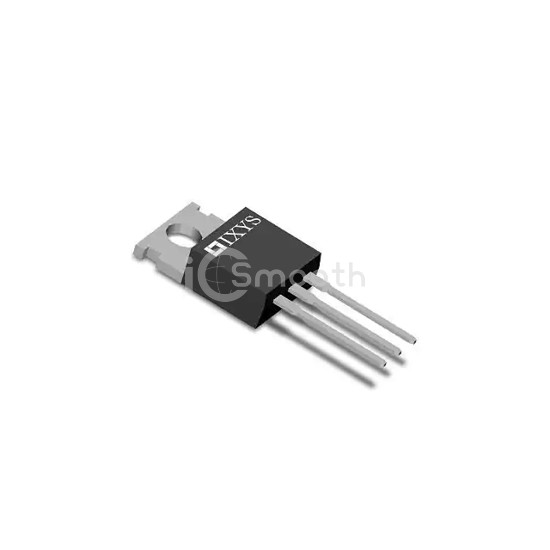

IXTP94N20X4

MOSFET 200V 94A N-CH ULTRA TO220

IXTP94N20X4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET 200V 94A N-CH ULTRA TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 5,362

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	94A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10.6mOhm @ 47A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	77 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5050 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	360W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
