Name: IXTJ6N150
Brand: IXYS
SKU: IXTJ6N150
Price: 13.03 USD
Availability: InStock

REF: IXTJ6N150 IXYS

IXTJ6N150

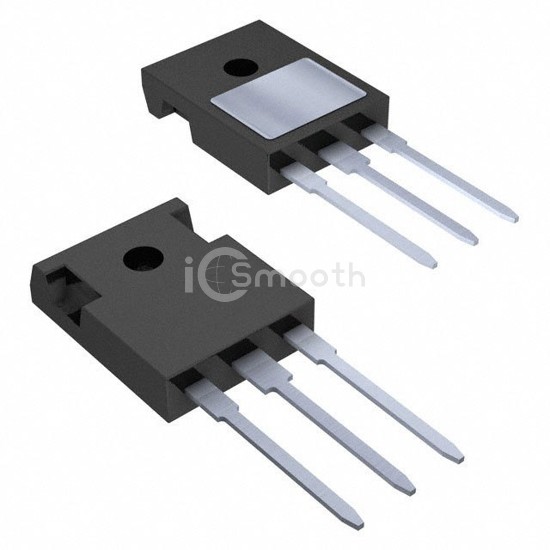

MOSFET N-CH 1500V 3A TO247

IXTJ6N150 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1500V 3A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,364

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.85Ohm @ 3A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	67 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2230 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
