Name: IXTJ4N150
Brand: IXYS
SKU: IXTJ4N150
Price: 11.67 USD
Availability: InStock

REF: IXTJ4N150 IXYS

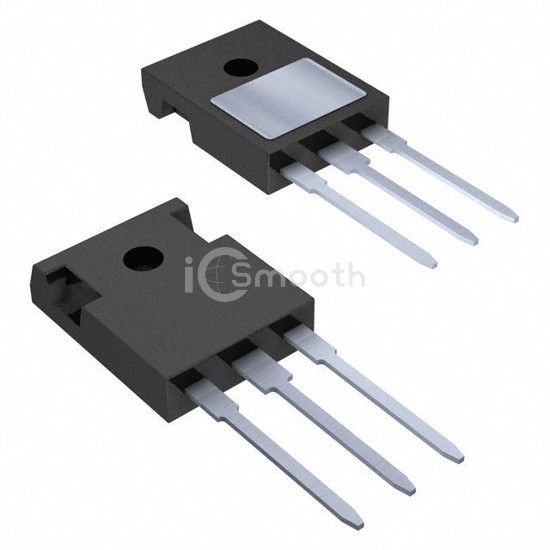

IXTJ4N150

MOSFET N-CH 1500V 2.5A TO247

IXTJ4N150 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1500V 2.5A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 5,320

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	44.5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1576 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
