Name: IXTJ36N20
Brand: IXYS
SKU: IXTJ36N20
Availability: InStock

REF: IXTJ36N20 IXYS

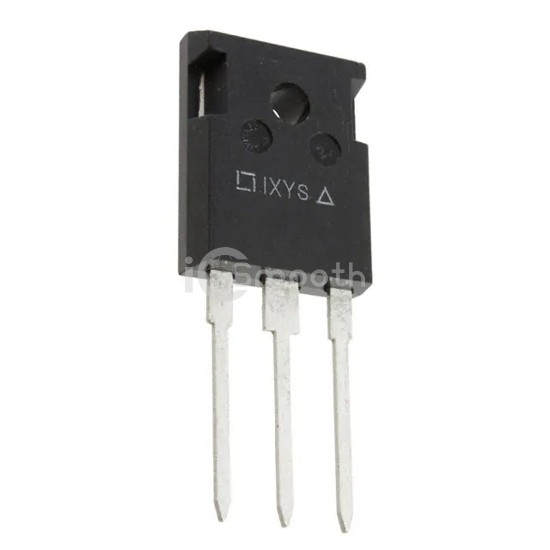

IXTJ36N20

MOSFET N-CH 200V 36A TO247AD

IXTJ36N20 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 200V 36A TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 8,844

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	4V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2970 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AD
Package / Case	TO-247-3
