Name: IXTH68P20T
Brand: IXYS
SKU: IXTH68P20T
Price: 18.42 USD
Availability: InStock

REF: IXTH68P20T IXYS

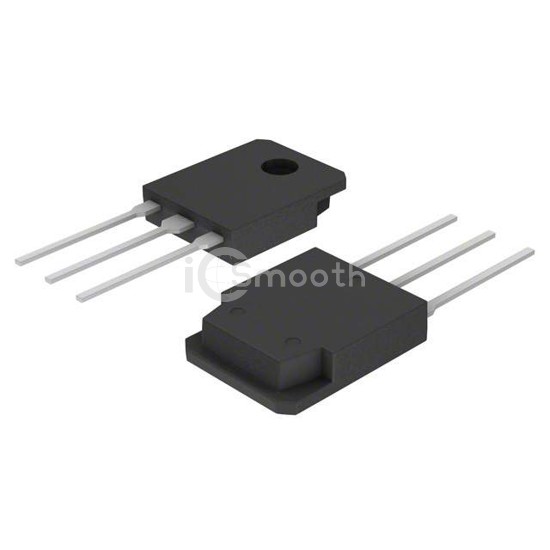

IXTH68P20T

MOSFET P-CH 200V 68A TO247

IXTH68P20T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET P-CH 200V 68A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,004

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	55mOhm @ 34A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	380 nC @ 10 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	33400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	568W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 (IXTH)
Package / Case	TO-247-3
