Name: IXTH60N20X4
Brand: IXYS
SKU: IXTH60N20X4
Price: 12.76 USD
Availability: InStock

REF: IXTH60N20X4 IXYS

IXTH60N20X4

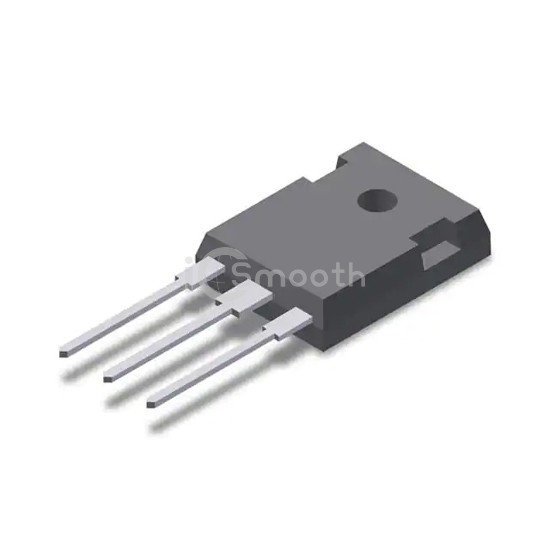

MOSFET ULTRA X4 200V 60A TO-247

IXTH60N20X4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET ULTRA X4 200V 60A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,252

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	21mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2450 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 (IXFH)
Package / Case	TO-247-3
