Name: IXTH1N170DHV
Brand: IXYS
SKU: IXTH1N170DHV
Price: 16.33 USD
Availability: InStock

REF: IXTH1N170DHV IXYS

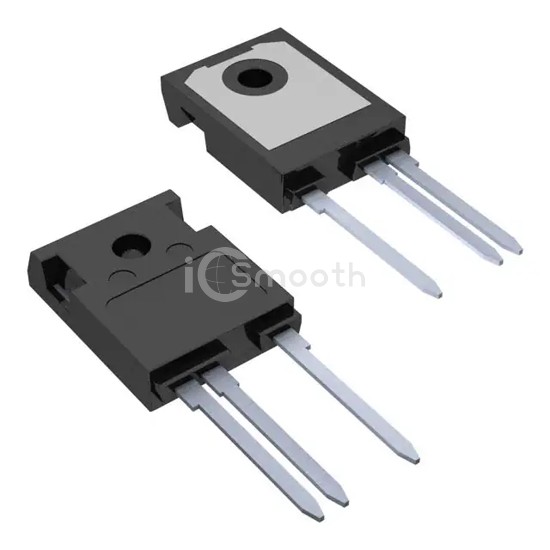

IXTH1N170DHV

MOSFET N-CH 1700V 1A TO247HV

IXTH1N170DHV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1700V 1A TO247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.

Datasheet Request a Quote

In Stock: 14

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	1A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	16Ohm @ 500mA, 0V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3090 pF @ 25 V
FET Feature	Depletion Mode
Power Dissipation (Max)	290W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247HV
Package / Case	TO-247-3 Variant
