IXTH140N075L2

In Stock: 6,443

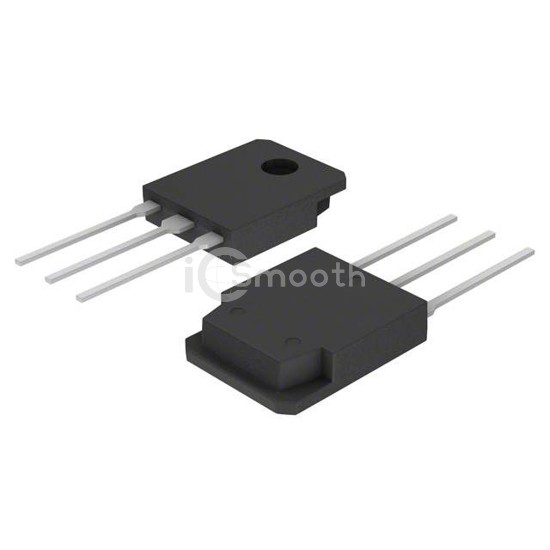

IXTH140N075L2 - IXYS - Transistors - FETs, MOSFETs - Single
REF: IXTH140N075L2 IXYS
IXTH140N075L2

IXYS

MOSFET N-CH 75V 140A TO247

IXTH140N075L2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 75V 140A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 6,443

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs11mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs275 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9300 pF @ 25 V
FET Feature-
Power Dissipation (Max)540W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247 (IXTH)
Package / CaseTO-247-3
