IXTH02N450HV

In Stock: 14

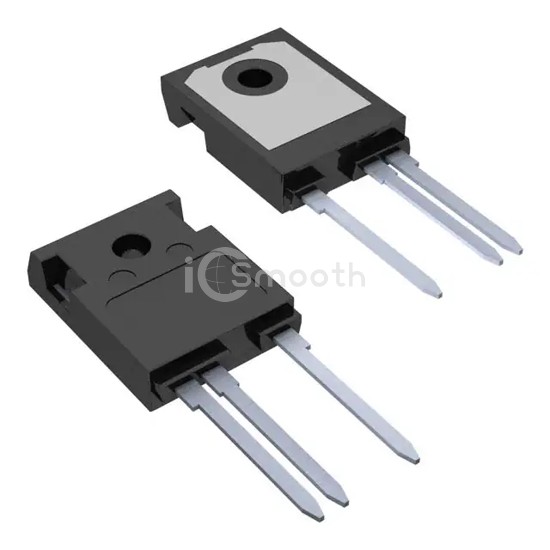

IXTH02N450HV - IXYS - Transistors - FETs, MOSFETs - Single
REF: IXTH02N450HV IXYS
IXTH02N450HV

IXYS

MOSFET N-CH 4500V 200MA TO247HV

IXTH02N450HV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 4500V 200MA TO247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.

Datasheet Request a Quote

In Stock: 14

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)4500 V
Current - Continuous Drain (Id) @ 25°C200mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs625Ohm @ 10mA, 10V
Vgs(th) (Max) @ Id6.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds246 pF @ 25 V
FET Feature-
Power Dissipation (Max)113W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247HV
Package / CaseTO-247-3 Variant
