Name: IXTF280N055T
Brand: IXYS
SKU: IXTF280N055T
Availability: InStock

REF: IXTF280N055T IXYS

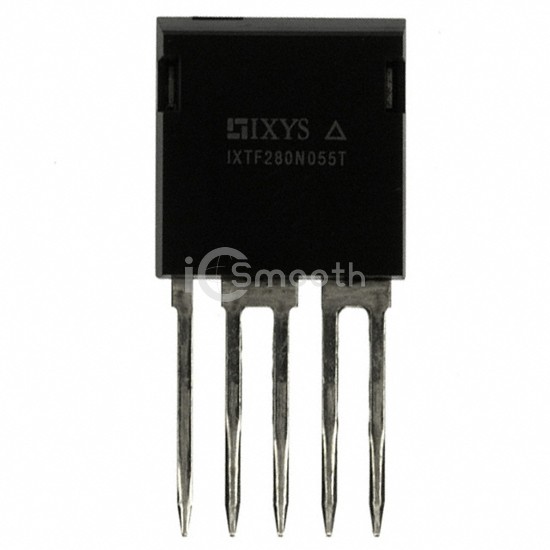

IXTF280N055T

MOSFET N-CH 55V 160A I4PAC

IXTF280N055T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 55V 160A I4PAC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case i4-Pac™-5.

Datasheet Request a Quote

In Stock: 8,376

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS i4-PAC™
Package / Case	i4-Pac™-5
