Name: IXTF200N10T
Brand: IXYS
SKU: IXTF200N10T
Price: 10.61 USD
Availability: InStock

REF: IXTF200N10T IXYS

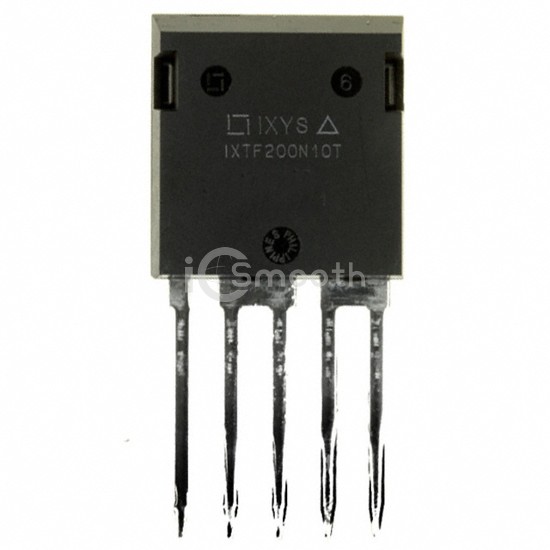

IXTF200N10T

MOSFET N-CH 100V 90A I4PAC

IXTF200N10T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 100V 90A I4PAC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case i4-Pac™-5.

Datasheet Request a Quote

In Stock: 1,112

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	152 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	9400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS i4-PAC™
Package / Case	i4-Pac™-5
