Name: IXTF1N450
Brand: IXYS
SKU: IXTF1N450
Price: 99.34 USD
Availability: InStock

REF: IXTF1N450 IXYS

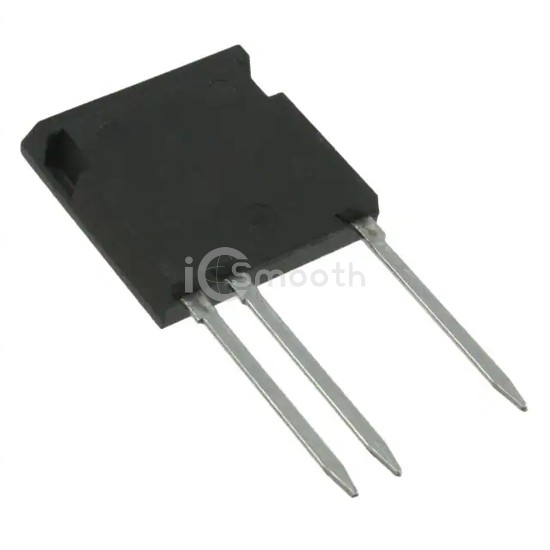

IXTF1N450

MOSFET N-CH 4500V 900MA I4PAC

IXTF1N450 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 4500V 900MA I4PAC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads).

Datasheet Request a Quote

In Stock: 8,127

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	4500 V
Current - Continuous Drain (Id) @ 25°C	900mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	85Ohm @ 50mA, 10V
Vgs(th) (Max) @ Id	6.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1730 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	160W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS i4-PAC™
Package / Case	i4-Pac™-5 (3 Leads)
