Name: IXTF03N400
Brand: IXYS
SKU: IXTF03N400
Availability: InStock

REF: IXTF03N400 IXYS

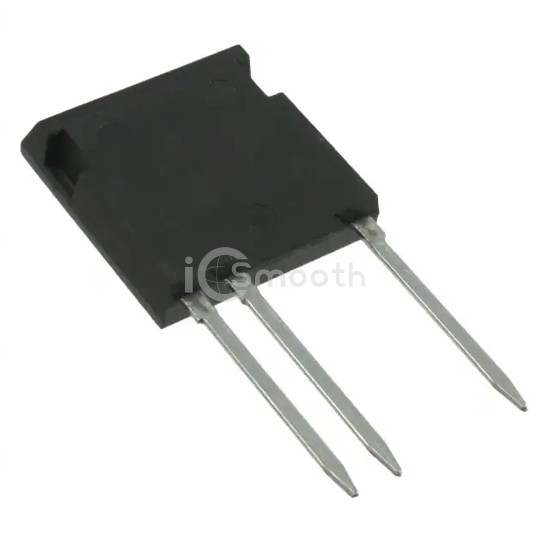

IXTF03N400

MOSFET N-CH 4000V 300MA I4PAC

IXTF03N400 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 4000V 300MA I4PAC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads).

Datasheet Request a Quote

In Stock: 9,757

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	4000 V
Current - Continuous Drain (Id) @ 25°C	300mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	300Ohm @ 150mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	435 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	70W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS i4-PAC™
Package / Case	i4-Pac™-5 (3 Leads)
