Name: IXTC36P15P
Brand: IXYS
SKU: IXTC36P15P
Availability: InStock

REF: IXTC36P15P IXYS

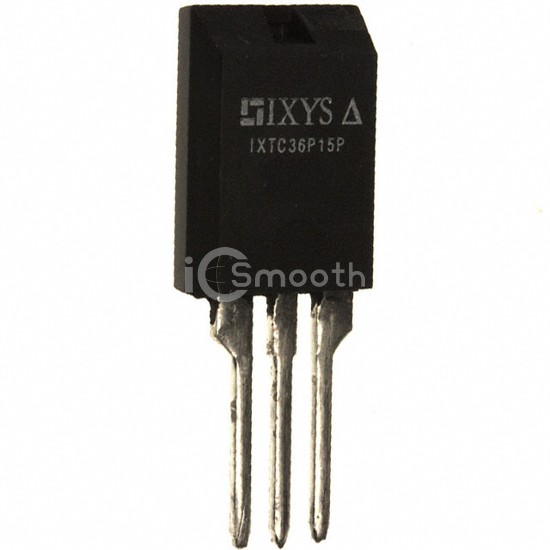

IXTC36P15P

MOSFET P-CH 150V 22A ISOPLUS220

IXTC36P15P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET P-CH 150V 22A ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case ISOPLUS220™.

Datasheet Request a Quote

In Stock: 6,161

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	120mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	55 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2950 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS220™
Package / Case	ISOPLUS220™
