Name: IXTC280N055T
Brand: IXYS
SKU: IXTC280N055T
Availability: InStock

REF: IXTC280N055T IXYS

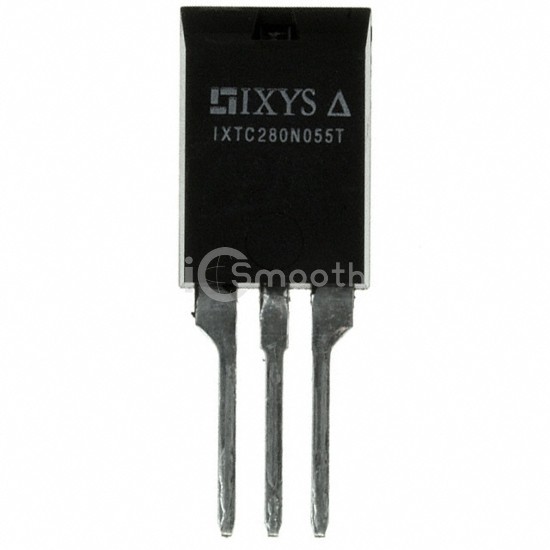

IXTC280N055T

MOSFET N-CH 55V 145A ISOPLUS220

IXTC280N055T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 55V 145A ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case ISOPLUS220™.

Datasheet Request a Quote

In Stock: 6,743

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	145A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	160W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS220™
Package / Case	ISOPLUS220™
