Name: IXTC160N10T
Brand: IXYS
SKU: IXTC160N10T
Availability: InStock

REF: IXTC160N10T IXYS

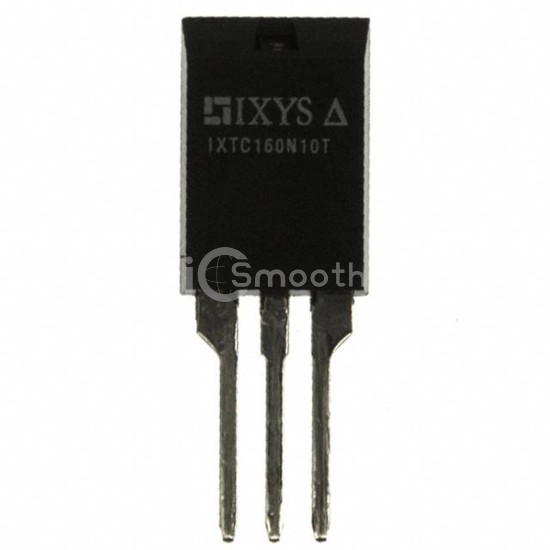

IXTC160N10T

MOSFET N-CH 100V 83A ISOPLUS220

IXTC160N10T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 100V 83A ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case ISOPLUS220™.

Datasheet Request a Quote

In Stock: 7,370

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	83A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	132 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	140W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS220™
Package / Case	ISOPLUS220™
