Name: IXTA270N04T4
Brand: IXYS
SKU: IXTA270N04T4
Price: 3.99 USD
Availability: InStock

REF: IXTA270N04T4 IXYS

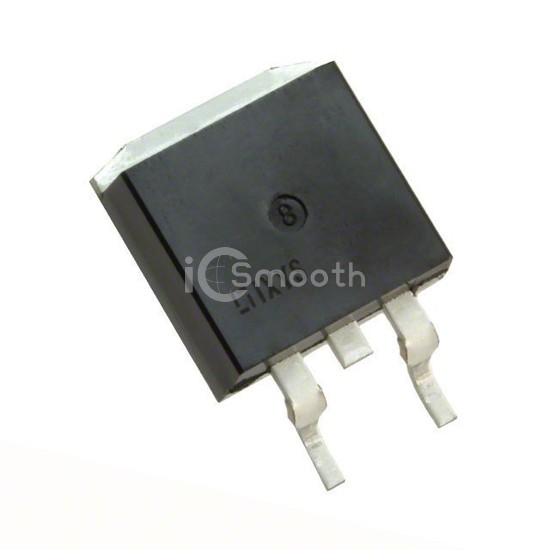

IXTA270N04T4

MOSFET N-CH 40V 270A TO263AA

IXTA270N04T4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 40V 270A TO263AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 9,490

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	270A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	182 nC @ 10 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	9140 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263AA
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
