Name: IXST45N120B
Brand: IXYS
SKU: IXST45N120B
Availability: InStock

REF: IXST45N120B IXYS

IXST45N120B

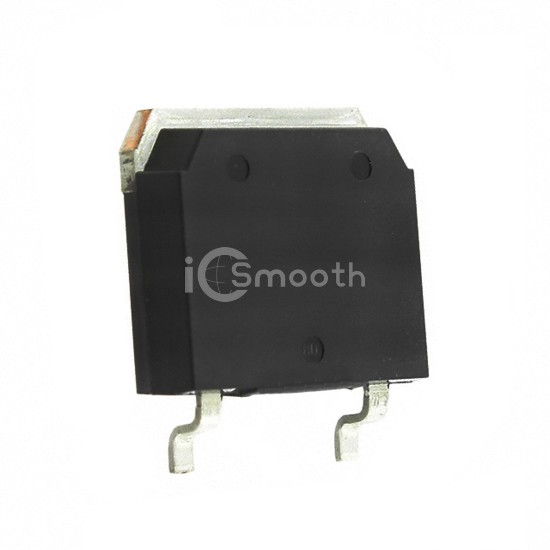

IGBT 1200V 75A 300W TO268

IXST45N120B is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 75A 300W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 5,501

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Current - Collector Pulsed (Icm)	180 A
Vce(on) (Max) @ Vge, Ic	3V @ 15V, 45A
Power - Max	300 W
Switching Energy	13mJ (off)
Input Type	Standard

Gate Charge	120 nC
Td (on/off) @ 25°C	36ns/360ns
Test Condition	960V, 45A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
