IXSH45N120B

In Stock: 7,993

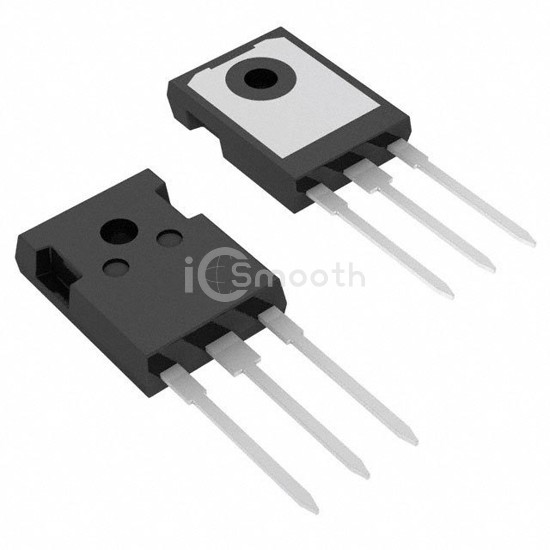

IXSH45N120B - IXYS - Transistors - IGBTs - Single
REF: IXSH45N120B IXYS
IXSH45N120B

IXYS

IGBT 1200V 75A 300W TO247

IXSH45N120B is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 75A 300W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 7,993

Specifications

17 parameters
Product StatusObsolete
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 45A
Power - Max300 W
Switching Energy13mJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C36ns/360ns
Test Condition960V, 45A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
