IXSH45N100

In Stock: 4,531
IXSH45N100 - IXYS - Transistors - IGBTs - Single
REF: IXSH45N100 IXYS
IXSH45N100

IXYS

IGBT 1000V 75A 300W TO247

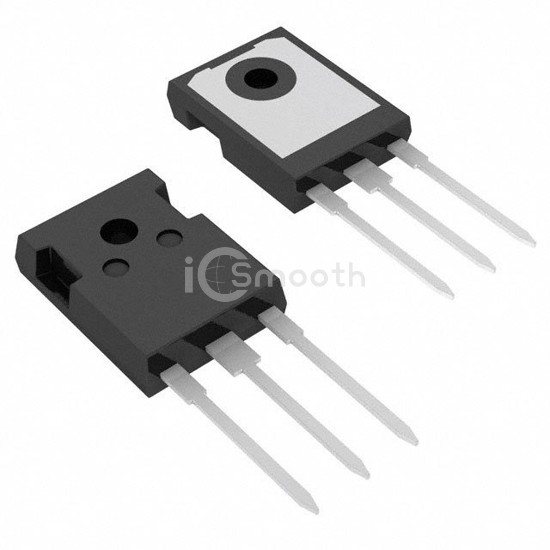

IXSH45N100 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1000V 75A 300W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 4,531

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1000 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 45A
Power - Max300 W
Switching Energy15mJ (off)
Input TypeStandard
Gate Charge165 nC
Td (on/off) @ 25°C80ns/400ns
Test Condition800V, 45A, 2.7Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
