IXSH15N120BD1

In Stock: 4,510
IXSH15N120BD1 - IXYS - Transistors - IGBTs - Single
REF: IXSH15N120BD1 IXYS
IXSH15N120BD1

IXYS

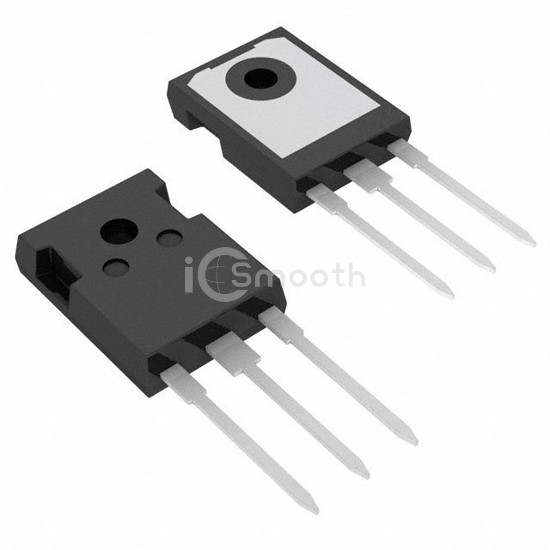

IGBT 1200V 30A 150W TO247

IXSH15N120BD1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 30A 150W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 4,510

Specifications

17 parameters
Product StatusObsolete
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 15A
Power - Max150 W
Switching Energy1.5mJ (off)
Input TypeStandard
Gate Charge57 nC
Td (on/off) @ 25°C30ns/148ns
Test Condition960V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)30 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
