IXLF19N250A

In Stock: 7,232

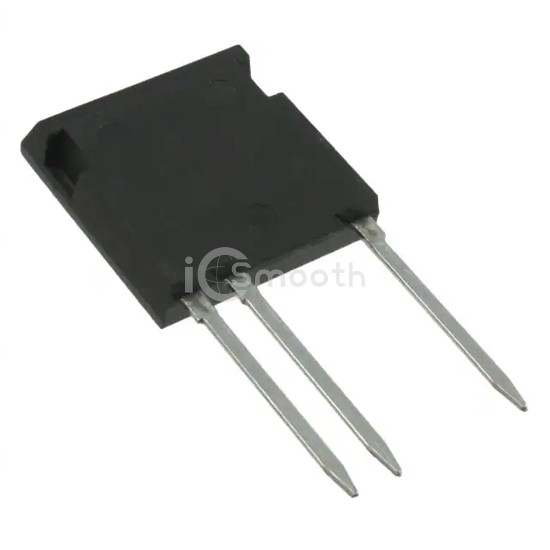

IXLF19N250A - IXYS - Transistors - IGBTs - Single
REF: IXLF19N250A IXYS
IXLF19N250A

IXYS

IGBT 2500V 32A 250W I4PAC

IXLF19N250A is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2500V 32A 250W I4PAC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 32 A.

Datasheet Request a Quote

In Stock: 7,232

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)32 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 19A
Power - Max250 W
Switching Energy15mJ (on), 30mJ (off)
Input TypeStandard
Gate Charge142 nC
Td (on/off) @ 25°C-
Test Condition1500V, 19A, 47Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
