IXGX55N120A3H1 - IXYS - Transistors - IGBTs - Single
REF: IXGX55N120A3H1 IXYS
IXGX55N120A3H1

IXYS

IGBT 1200V 125A 460W PLUS247

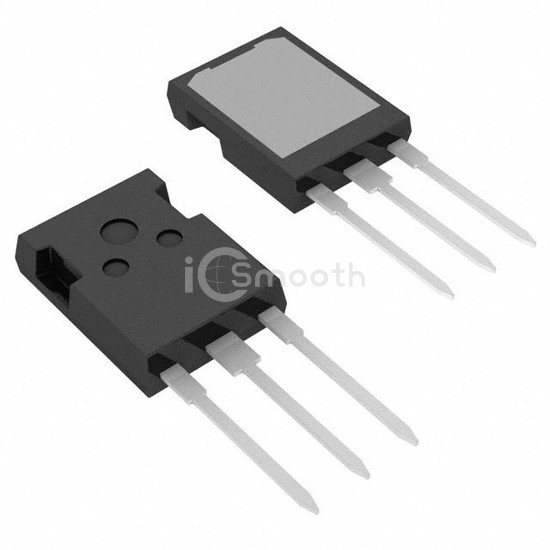

IXGX55N120A3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 125A 460W PLUS247. Key specifications: mounting type Through Hole, package / case TO-247-3 Variant, current - collector (ic) (max) 125 A, power - max 460 W.

Request a Quote

In Stock: 7,343

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)125 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 55A
Power - Max460 W
Switching Energy5.1mJ (on), 13.3mJ (off)
Input TypeStandard
Gate Charge185 nC
Td (on/off) @ 25°C23ns/365ns
Test Condition960V, 55A, 3Ohm, 15V
Reverse Recovery Time (trr)200 ns
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackagePLUS247™-3
