Name: IXGT20N120BD1
Brand: IXYS
SKU: IXGT20N120BD1
Availability: InStock

REF: IXGT20N120BD1 IXYS

IXGT20N120BD1

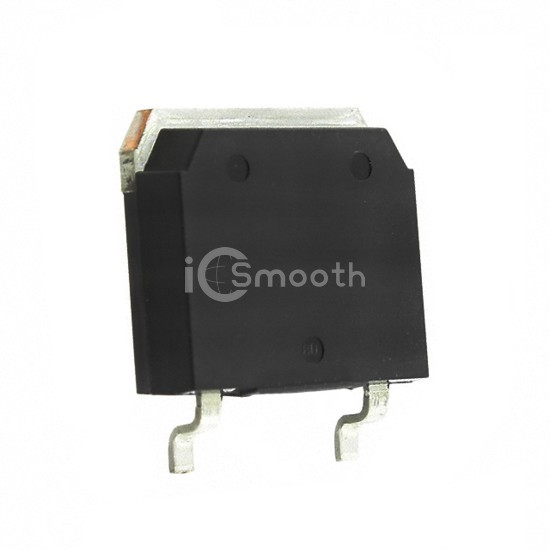

IGBT 1200V 40A 190W TO268

IXGT20N120BD1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 40A 190W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 3,674

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	100 A
Vce(on) (Max) @ Vge, Ic	3.4V @ 15V, 20A
Power - Max	190 W
Switching Energy	2.1mJ (off)
Input Type	Standard

Gate Charge	72 nC
Td (on/off) @ 25°C	25ns/150ns
Test Condition	960V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	40 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
