IXGL75N250

In Stock: 8,950

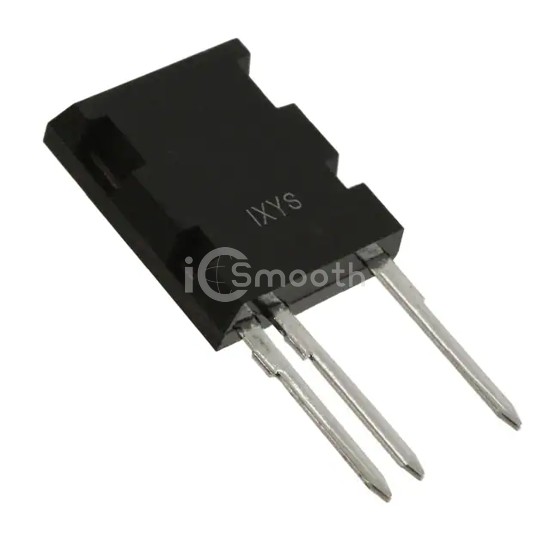

IXGL75N250 - IXYS - Transistors - IGBTs - Single
REF: IXGL75N250 IXYS
IXGL75N250

IXYS

IGBT 2500V 110A 430W I5-PAK

IXGL75N250 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2500V 110A 430W I5-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 110 A.

Datasheet Request a Quote

In Stock: 8,950

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)110 A
Current - Collector Pulsed (Icm)580 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 75A
Power - Max430 W
Switching Energy-
Input TypeStandard
Gate Charge410 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
