IXGK55N120A3H1

In Stock: 6,371
IXGK55N120A3H1 - IXYS - Transistors - IGBTs - Single
REF: IXGK55N120A3H1 IXYS
IXGK55N120A3H1

IXYS

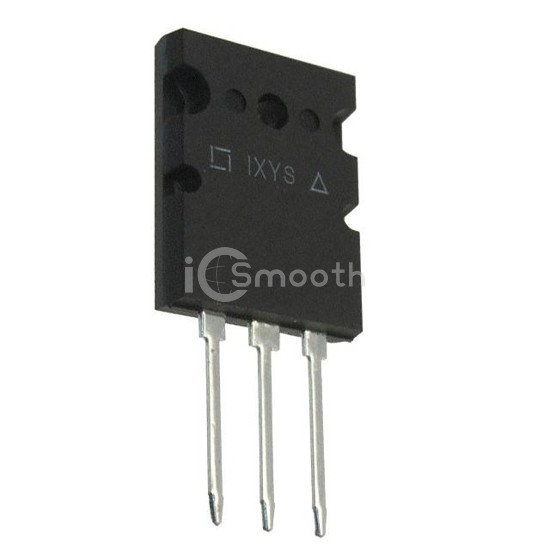

IGBT 1200V 125A 460W TO264

IXGK55N120A3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 125A 460W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 125 A.

Datasheet Request a Quote

In Stock: 6,371

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)125 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 55A
Power - Max460 W
Switching Energy5.1mJ (on), 13.3mJ (off)
Input TypeStandard
Gate Charge185 nC
Td (on/off) @ 25°C23ns/365ns
Test Condition960V, 55A, 3Ohm, 15V
Reverse Recovery Time (trr)200 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 (IXGK)
