IXGK100N170

In Stock: 641
IXGK100N170 - IXYS - Transistors - IGBTs - Single
REF: IXGK100N170 IXYS

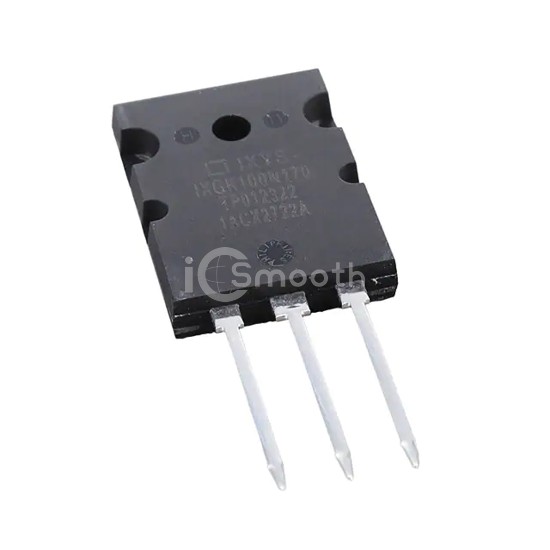

IXGK100N170

IXYS

IGBT PT 1000V 120A TO-264

IXGK100N170 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT PT 1000V 120A TO-264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-264-3, TO-264AA, current - collector (ic) (max) 170 A.

Request a Quote

In Stock: 641

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)170 A
Current - Collector Pulsed (Icm)600 A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 100A
Power - Max830 W
Switching Energy-
Input TypeStandard
Gate Charge425 nC
Td (on/off) @ 25°C35ns/285ns
Test Condition850V, 100A, 1Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackagePLUS264™
