IXGH56N60B3D1

In Stock: 4,765
IXGH56N60B3D1 - IXYS - Transistors - IGBTs - Single
REF: IXGH56N60B3D1 IXYS
IXGH56N60B3D1

IXYS

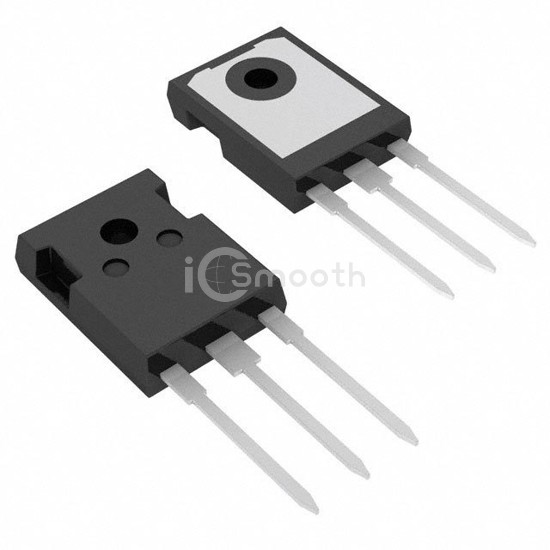

IGBT 600V 330W TO247

IXGH56N60B3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 330W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, power - max 330 W.

Datasheet Request a Quote

In Stock: 4,765

Specifications

17 parameters
Product StatusObsolete
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)-
Current - Collector Pulsed (Icm)350 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 44A
Power - Max330 W
Switching Energy1.3mJ (on), 1.05mJ (off)
Input TypeStandard
Gate Charge138 nC
Td (on/off) @ 25°C26ns/155ns
Test Condition480V, 44A, 5Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
