IXGH45N120

In Stock: 7,148
IXGH45N120 - IXYS - Transistors - IGBTs - Single
REF: IXGH45N120 IXYS
IXGH45N120

IXYS

IGBT 1200V 75A 300W TO247

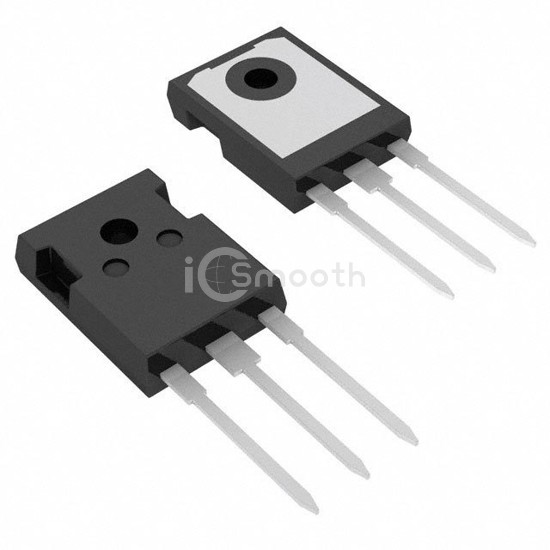

IXGH45N120 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 75A 300W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 7,148

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 45A
Power - Max300 W
Switching Energy14mJ (off)
Input TypeStandard
Gate Charge170 nC
Td (on/off) @ 25°C55ns/370ns
Test Condition960V, 45A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
