IXGH40N120C3D1

In Stock: 13
IXGH40N120C3D1 - IXYS - Transistors - IGBTs - Single
REF: IXGH40N120C3D1 IXYS
IXGH40N120C3D1

IXYS

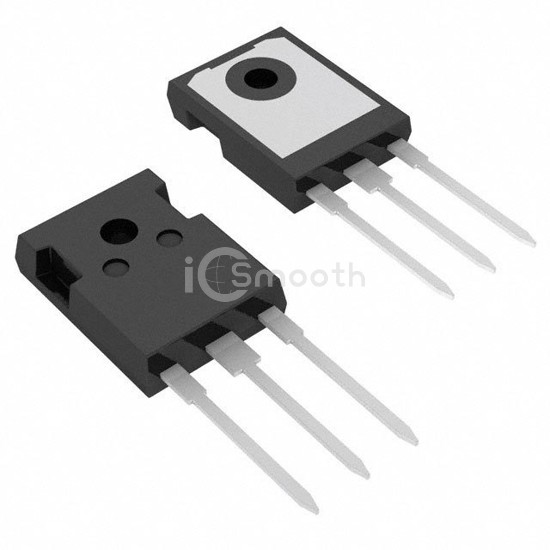

IGBT 1200V 75A 380W TO247

IXGH40N120C3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 75A 380W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 13

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic4.4V @ 15V, 30A
Power - Max380 W
Switching Energy1.8mJ (on), 550µJ (off)
Input TypeStandard
Gate Charge142 nC
Td (on/off) @ 25°C17ns/130ns
Test Condition600V, 30A, 3Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
