IXGF25N250

In Stock: 4,245

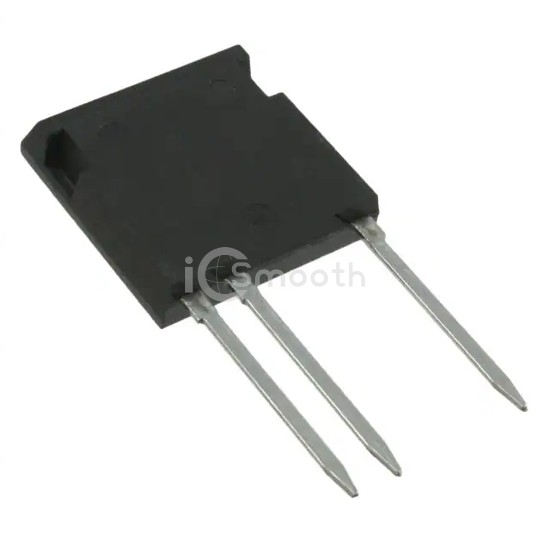

IXGF25N250 - IXYS - Transistors - IGBTs - Single
REF: IXGF25N250 IXYS
IXGF25N250

IXYS

IGBT 2500V 30A 114W I4-PAK

IXGF25N250 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2500V 30A 114W I4-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 4,245

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic5.2V @ 15V, 75A
Power - Max114 W
Switching Energy-
Input TypeStandard
Gate Charge75 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
