IXGC16N60B2

In Stock: 9,598

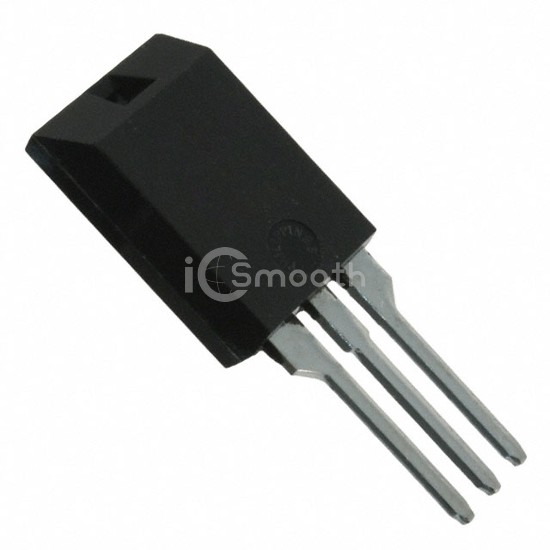

IXGC16N60B2 - IXYS - Transistors - IGBTs - Single
REF: IXGC16N60B2 IXYS
IXGC16N60B2

IXYS

IGBT 600V 28A 63W ISOPLUS220

IXGC16N60B2 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 28A 63W ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUS220™, current - collector (ic) (max) 28 A.

Datasheet Request a Quote

In Stock: 9,598

Specifications

17 parameters
Product StatusObsolete
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)28 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 12A
Power - Max63 W
Switching Energy150mJ (off)
Input TypeStandard
Gate Charge32 nC
Td (on/off) @ 25°C25ns/70ns
Test Condition400V, 12A, 22Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUS220™
Supplier Device PackageISOPLUS220™
