IXGC12N60C

In Stock: 1,569

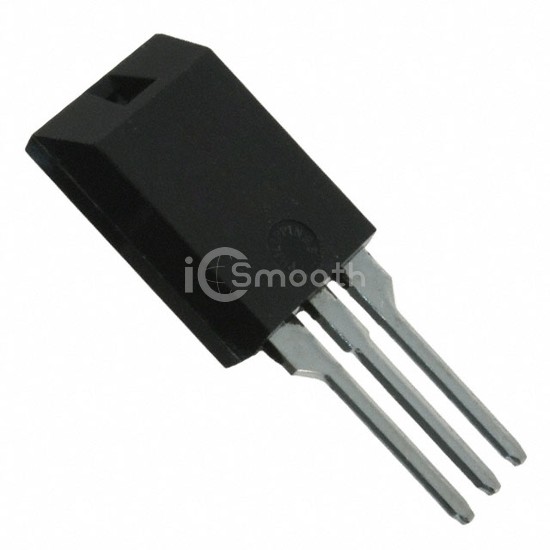

IXGC12N60C - IXYS - Transistors - IGBTs - Single
REF: IXGC12N60C IXYS
IXGC12N60C

IXYS

IGBT 600V 15A 85W ISOPLUS220

IXGC12N60C is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 15A 85W ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case ISOPLUS220™, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 1,569

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)15 A
Current - Collector Pulsed (Icm)48 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 12A
Power - Max85 W
Switching Energy90µJ (off)
Input TypeStandard
Gate Charge32 nC
Td (on/off) @ 25°C20ns/60ns
Test Condition480V, 12A, 18Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUS220™
Supplier Device PackageISOPLUS220™
