Name: IXFV52N30P
Brand: IXYS
SKU: IXFV52N30P
Availability: InStock

REF: IXFV52N30P IXYS

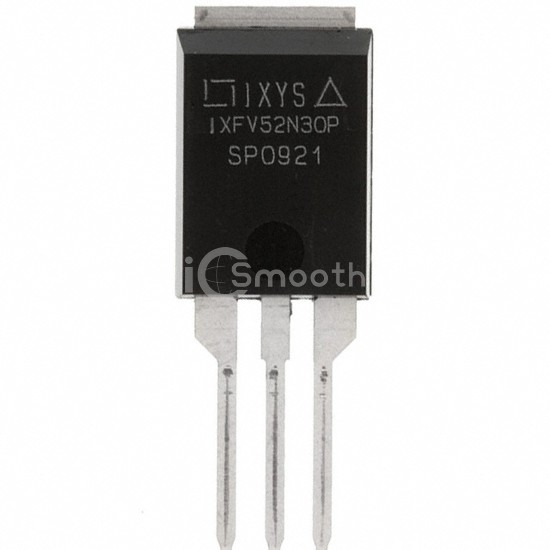

IXFV52N30P

MOSFET N-CH 300V 52A PLUS220

IXFV52N30P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 300V 52A PLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, Short Tab.

Datasheet Request a Quote

In Stock: 8,241

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	300 V
Current - Continuous Drain (Id) @ 25°C	52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	66mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	110 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3490 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	400W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS220
Package / Case	TO-220-3, Short Tab
