Name: IXFV26N50P
Brand: IXYS
SKU: IXFV26N50P
Availability: InStock

REF: IXFV26N50P IXYS

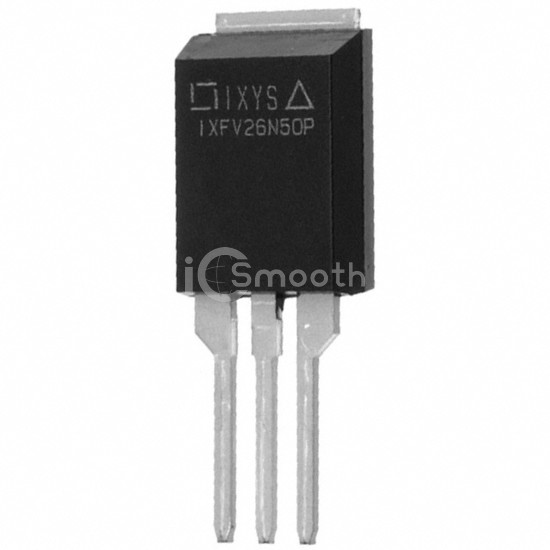

IXFV26N50P

MOSFET N-CH 500V 26A PLUS220

IXFV26N50P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 500V 26A PLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, Short Tab.

Datasheet Request a Quote

In Stock: 6,279

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	230mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	5.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	400W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS220
Package / Case	TO-220-3, Short Tab
