Name: IXFV18N90P
Brand: IXYS
SKU: IXFV18N90P
Availability: InStock

REF: IXFV18N90P IXYS

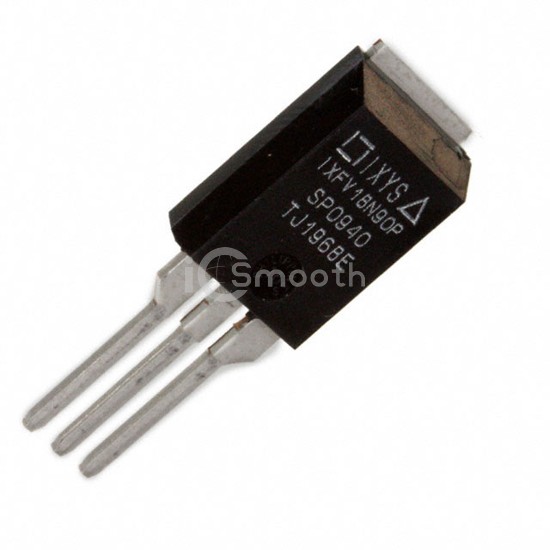

IXFV18N90P

MOSFET N-CH 900V 18A PLUS220

IXFV18N90P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 900V 18A PLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, Short Tab.

Datasheet Request a Quote

In Stock: 1,451

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	6.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	97 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	5230 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	540W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS220
Package / Case	TO-220-3, Short Tab
