Name: IXFT78N60X3HV
Brand: IXYS
SKU: IXFT78N60X3HV
Availability: InStock

REF: IXFT78N60X3HV IXYS

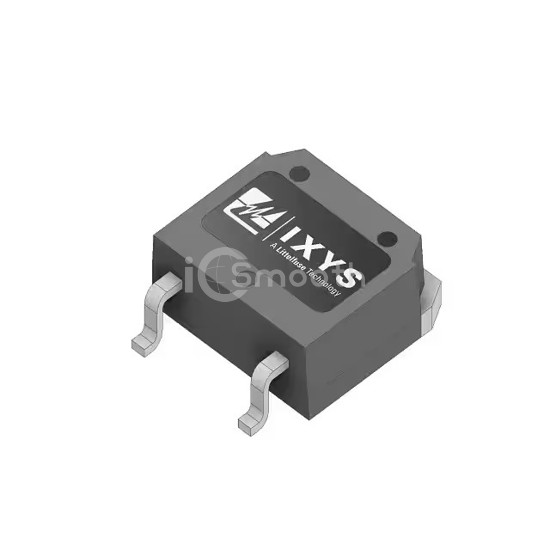

IXFT78N60X3HV

MOSFET ULTRA 600V 78A TO268HV

IXFT78N60X3HV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET ULTRA 600V 78A TO268HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 3,714

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	38mOhm @ 39A, 10V
Vgs(th) (Max) @ Id	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4700 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	780W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXFT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
