Name: IXFT32N100XHV
Brand: IXYS
SKU: IXFT32N100XHV
Price: 23.44 USD
Availability: InStock

REF: IXFT32N100XHV IXYS

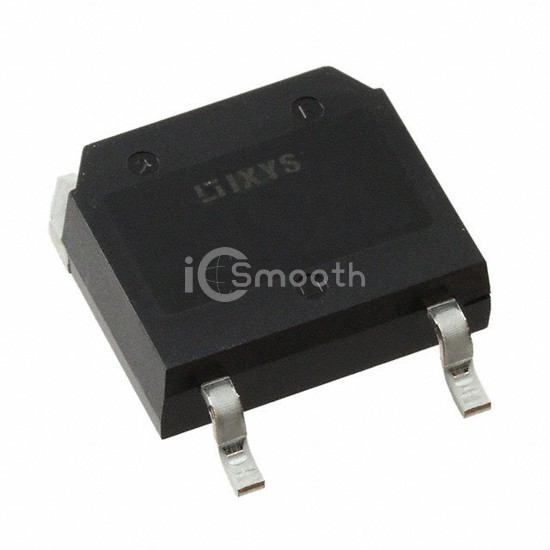

IXFT32N100XHV

MOSFET N-CH 1000V 32A TO268HV

IXFT32N100XHV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1000V 32A TO268HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 194

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	220mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	6V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	4075 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	890W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXFT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
