Name: IXFT180N20X3HV
Brand: IXYS
SKU: IXFT180N20X3HV
Price: 18.10 USD
Availability: InStock

REF: IXFT180N20X3HV IXYS

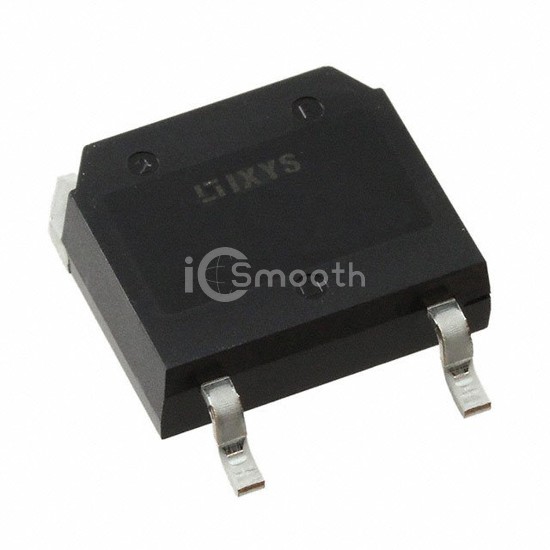

IXFT180N20X3HV

MOSFET N-CH 200V 180A TO268HV

IXFT180N20X3HV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 200V 180A TO268HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 9,110

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7.5mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	154 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	780W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXFT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
