Name: IXFT150N17T2
Brand: IXYS
SKU: IXFT150N17T2
Price: 9.73 USD
Availability: InStock

REF: IXFT150N17T2 IXYS

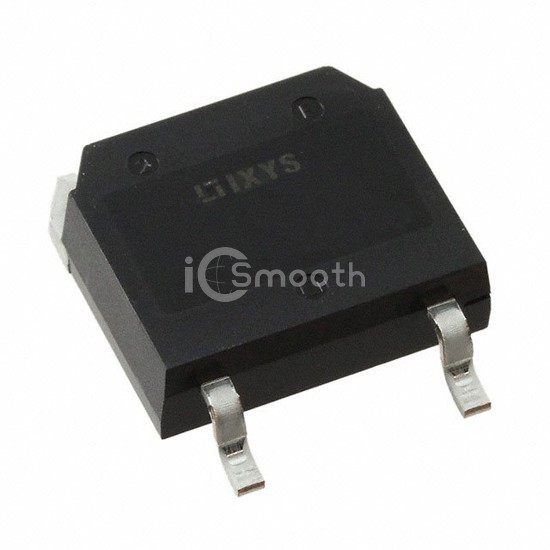

IXFT150N17T2

MOSFET N-CH 175V 150A TO268HV

IXFT150N17T2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 175V 150A TO268HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 7,587

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	175 V
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	12mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	233 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	880W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXFT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
