Name: IXFP4N85X
Brand: IXYS
SKU: IXFP4N85X
Price: 4.06 USD
Availability: InStock

REF: IXFP4N85X IXYS

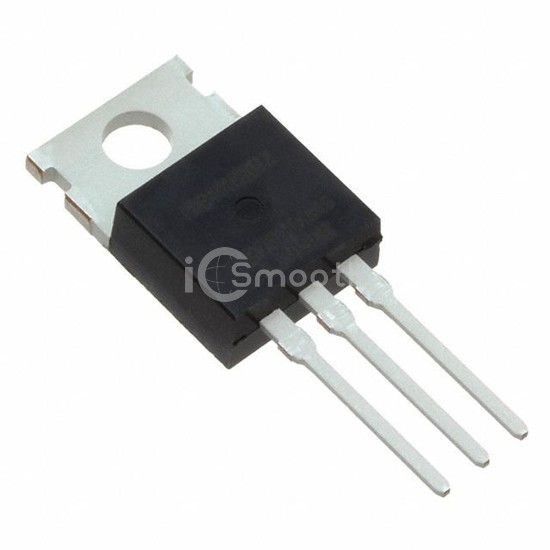

IXFP4N85X

MOSFET N-CH 850V 3.5A TO220AB

IXFP4N85X is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 850V 3.5A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 5,029

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.5Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	247 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB (IXFP)
Package / Case	TO-220-3
