Name: IXFP14N85XM
Brand: IXYS
SKU: IXFP14N85XM
Price: 7.02 USD
Availability: InStock

REF: IXFP14N85XM IXYS

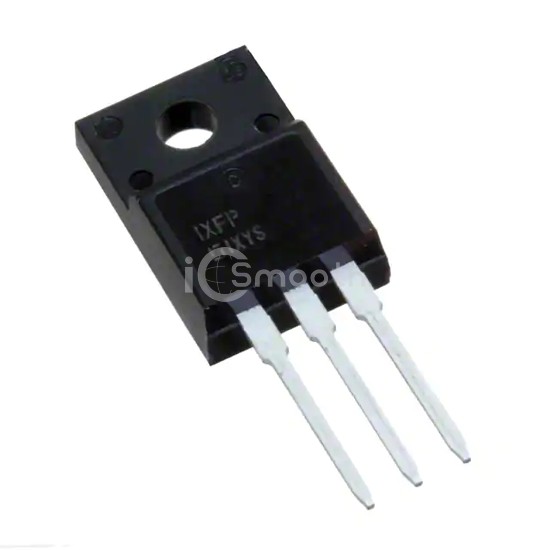

IXFP14N85XM

MOSFET N-CHANNEL 850V 14A TO220

IXFP14N85XM is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CHANNEL 850V 14A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 8,536

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1043 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3 Full Pack
