Name: IXFP14N85X
Brand: IXYS
SKU: IXFP14N85X
Price: 7.02 USD
Availability: InStock

REF: IXFP14N85X IXYS

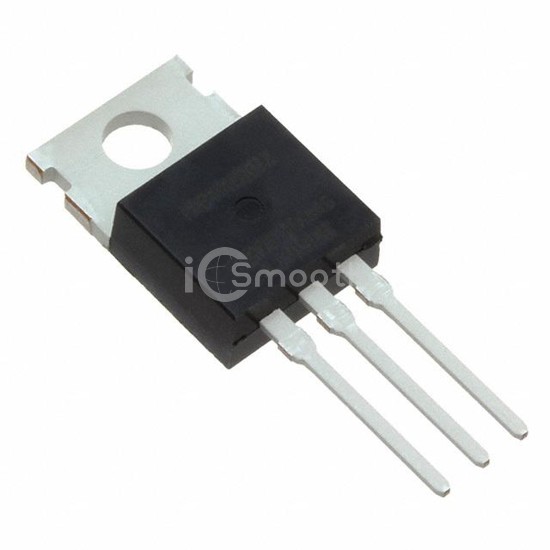

IXFP14N85X

MOSFET N-CH 850V 14A TO220AB

IXFP14N85X is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 850V 14A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 7,964

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1043 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	460W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB (IXFP)
Package / Case	TO-220-3
