Name: IXFL38N100Q2
Brand: IXYS
SKU: IXFL38N100Q2
Availability: InStock

REF: IXFL38N100Q2 IXYS

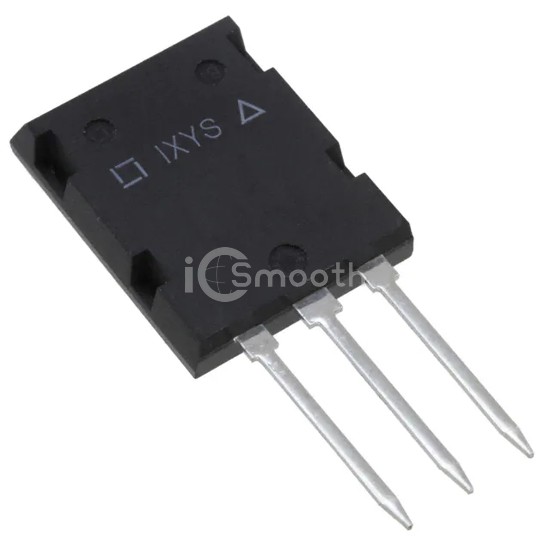

IXFL38N100Q2

MOSFET N-CH 1000V 29A ISOPLUS264

IXFL38N100Q2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1000V 29A ISOPLUS264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA.

Datasheet Request a Quote

In Stock: 3,999

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	5.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	250 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	13500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	380W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS264™
Package / Case	TO-264-3, TO-264AA
