Name: IXFL30N120P
Brand: IXYS
SKU: IXFL30N120P
Availability: InStock

REF: IXFL30N120P IXYS

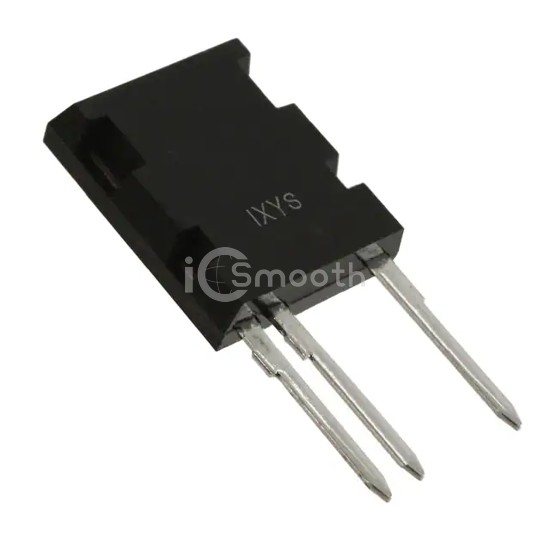

IXFL30N120P

MOSFET N-CH 1200V 18A I5PAK

IXFL30N120P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1200V 18A I5PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™.

Datasheet Request a Quote

In Stock: 1,023

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	380mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	6.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	310 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	19000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	357W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUSi5-Pak™
Package / Case	ISOPLUSi5-Pak™
