Name: IXFH80N65X2-4
Brand: IXYS
SKU: IXFH80N65X2-4
Price: 15.94 USD
Availability: InStock

REF: IXFH80N65X2-4 IXYS

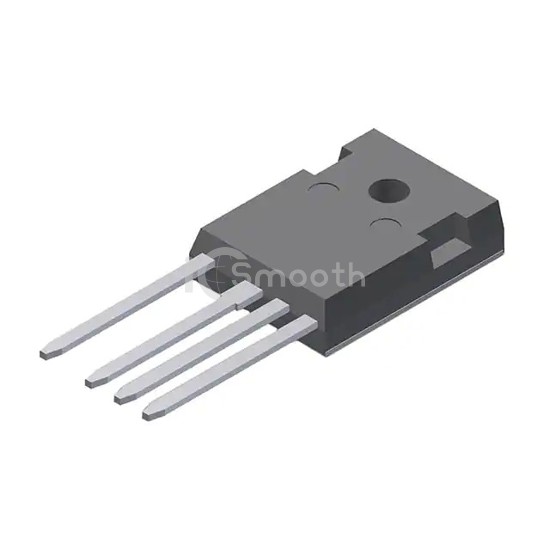

IXFH80N65X2-4

MOSFET N-CH 650V 80A TO247-4L

IXFH80N65X2-4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 650V 80A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 55

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	38mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	8300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	890W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
