IXFH60N65X2-4

In Stock: 278

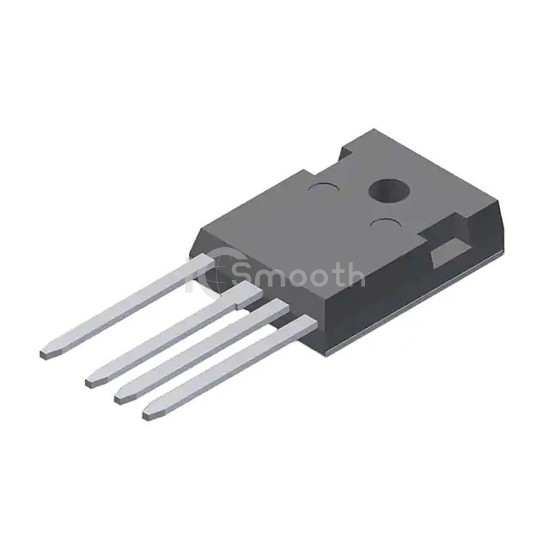

IXFH60N65X2-4 - IXYS - Transistors - FETs, MOSFETs - Single
REF: IXFH60N65X2-4 IXYS
IXFH60N65X2-4

IXYS

MOSFET N-CH 650V 60A TO247-4L

IXFH60N65X2-4 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 650V 60A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 278

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs52mOhm @ 30A, 10V
Vgs(th) (Max) @ Id5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs108 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6300 pF @ 25 V
FET Feature-
Power Dissipation (Max)780W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
